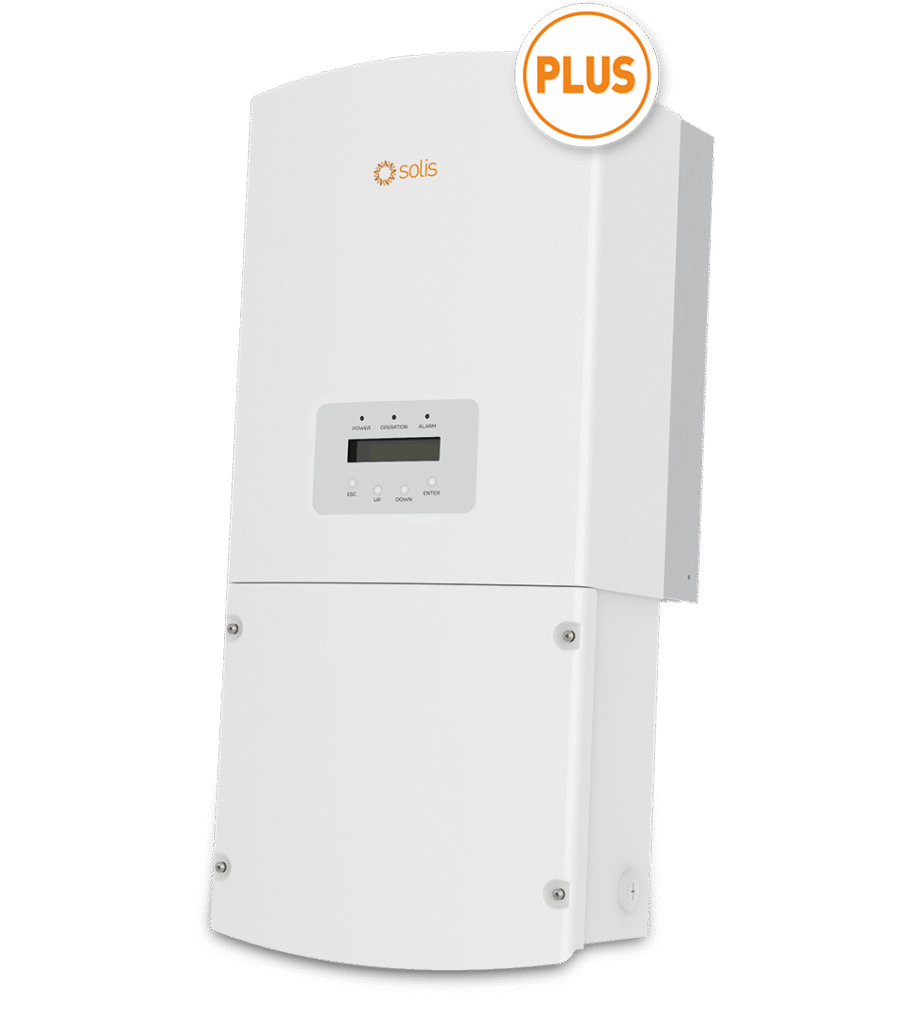

Solis-1P(6-10)K-4G-US

Solis 6-10 kW Single Phase String Inverter – Reliable Performance and Maximum Flexibility

Trusted and field-proven since 2011 in the United States and Canada, the Solis 6-10 kW single-phase string inverter family offers exceptional reliability and adaptability for residential and commercial solar projects. Featuring up to 4 independent MPPTs, it is ideal for complex system designs, ensuring maximum energy harvest in diverse installation scenarios.

With a maximum string input current of 14A, these inverters are fully compatible with modern high-power and bifacial PV modules, enhancing system power density and broadening module options. Built-in transmitter capabilities further expand system flexibility and monitoring potential.

The Solis 6-10 kW series is PVRSS and UL3741 certified when used with appropriate racking and array-level rapid shutdown devices, enabling safer and faster installations while reducing overall project costs.

Ordering Code: Solis-1P(6-10)K-4G-US-PLUS

For detailed specifications, integrated rapid shutdown, optimizer, and meter options, please refer to the datasheet and compatibility list.

Single Phase Grid-Tied Inverter

Leading Features

Type	Single Phase Grid-Tied Inverter
Maximum Efficiency	97.8% (CEC Efficiency 97.5%)
Maximum String Current	Up to 14A
Certifications	CA Rule 21 compliant, UL 1741SB Certified
Communication Protocols	Sunspec protocol, optional Cellular and WiFi
Rapid Shutdown	Integrated module-level rapid shutdown transmitter
Monitoring	Support for module-level monitoring
MPPT Design	Industry-leading 3 and 4 MPPT designs
Safety Features	AFCI protection to proactively reduce fire risk
Warranty	10 years standard warranty with extension options
Optional Features	Built-in Revenue Grade Meter, ANSI C12.20-2010 compliant
