S6-GC30K-LV-US / S5-GC60K-LV-US

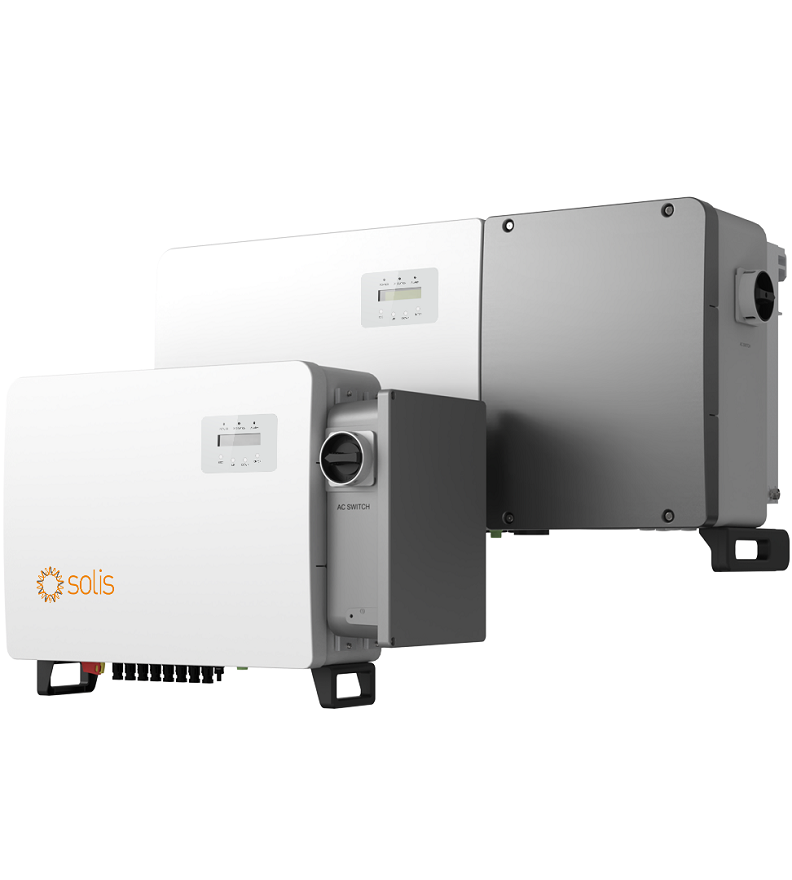

S6-GC30K-LV-US & S5-GC60K-LV-US Three-Phase String Inverters – Commercial-Grade Performance
The S6-GC30K-LV-US and S5-GC60K-LV-US string inverters are specifically designed for three-phase commercial rooftop PV projects operating with grid voltages of 240VAC or 208VAC.
With high input current capability, these inverters fully support the latest large-format PV modules, ensuring maximum compatibility, higher power density, and enhanced system flexibility. Their wider DC operating voltage range allows longer daily operation, ultimately delivering improved energy yields and more efficient project returns.
System commissioning, operations, and ongoing management are simplified thanks to advanced design and smart monitoring features. Optimized DC and AC connection ports further reduce cabling costs, lowering total project expenses.
Built and tested to perform reliably under the harshest environmental conditions, Solis inverters are globally recognized for quality and top-rated performance. Additionally, this product line is PVRSS and UL3741 compliant, enabling faster, safer, and more cost-effective installations.
Ordering Codes:
S6-GC30K-LV-US
S5-GC60K-LV-US
For detailed technical specifications and information on integrated rapid shutdown and optimizer options, please refer to the datasheet and compatibility list.
Download Attachment
Solis Three Phase Grid-Tied Inverter
Leading Features
| Category | Features |
|---|---|
| Efficient | – String current up to 20A – Max. efficiency 97.7% (CEC efficiency 97.0%) – Nighttime PID recovery function (optional) – Wide voltage range and low startup voltage – 3 MPPT design, supports multiple orientation system design |
| Safe | – Intelligent fan-cooling – Type 4X, C5 Anti-Corrosion Level – AFCI protection, proactively reduces fire risk – Integrated module level rapid shutdown transmitter – High quality components from globally recognized suppliers |
| Smart | – Supports RS485, Ethernet, WiFi, Cellular – Intelligent string monitoring, smart I-V curve scan – Scan to register on SolisCloud, supports remote upgrade and control – Equipped with external power control interface, supporting zero output power control |
| Economic | – > 1.5 DC/AC ratio – Supports high power modules for lower installation costs |
| Smart | Natural convection |
|---|---|
| MPPT | 3/8 |
| MPPT voltage range | 180-1000 V |
| AFCI | DC arc-fault circuit protection |
| Ingress protection | TYPE 4X |
| App Store | iPhone/Android |
