Bifacial Mono PERC Cell

Category solar Panels Tags Cell, PERC Brand: Aiko

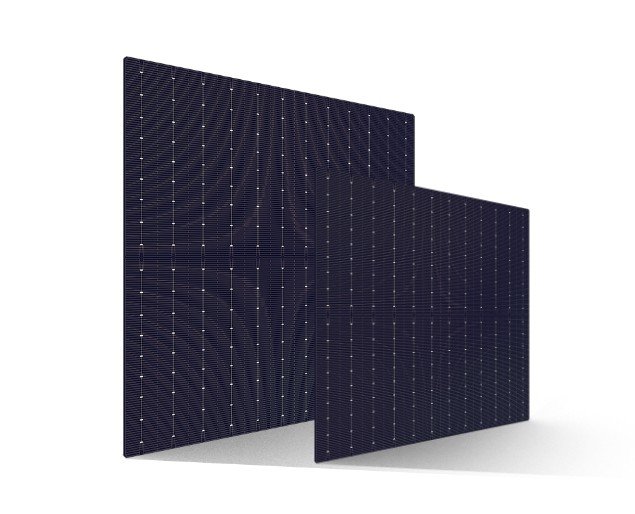

Bifacial Mono PERC Solar Cells

High Efficiency | High Reliability | High Power Yield | “Bifacial, Metrology, and Classification” Technology

Cell Sizes & Thickness:

182mm × 182mm (Diameter: 247 ± 0.5mm)
210mm × 210mm (Diameter: 295 ± 0.25mm)
Thickness: 160 ± 20μm

182mm 10BB Bifacial Mono PERC Cell:

Front Side (-): Silicon oxide + blue silicon nitride anti-reflection coating (PID Free); half-cut design; busbar head with large double fork; pads 1.2×1.3mm (head) & 0.8×1mm (middle)
Back Side (+): AlOx and SiNx passivated layer; 10 rear compound busbars & 160 rear Al fingers; busbar width 1.5mm & 1.0mm; 8-section silver anode 1.45mm; no laser pattern under rear electrode; round head silver electrode, hollow at both ends

210mm 12BB Bifacial Mono PERC Cell:

Front Side (-): Silicon dioxide + blue nitride anti-reflection film (PID free); three-segment design; 12 busbars & 120–180 fingers; busbar width 0.06mm; two-fork head 1.3×1.0mm; 4 pads at busbar/finger junction 1.2×0.5mm
Back Side (+): AlOx + SiNx dual layer; 12 rear compound busbars & 150–250 rear Al fingers; 8 sections; silver anode 1.4mm

210mm 9BB Bifacial Mono PERC Cell:

Front Side (-): Silicon dioxide + blue nitride anti-reflection film (PID free); three-segment design; 9 busbars & 120–180 fingers; busbar width 0.08mm; two-fork head 1.5×1.2mm; 4 pads at busbar/finger junction 1.5×1mm
Back Side (+): AlOx + SiNx dual layer; 9 rear compound busbars & 150–250 rear Al fingers; 9 sections; silver anode 1.8mm

These Bifacial Mono PERC cells integrate advanced metrology and classification technology to deliver high efficiency, reliable performance, and maximum power yield. Featuring precise busbar design, full back passivation, and bifacial capabilities, they are ideal for cutting-edge solar modules and commercial installations.
